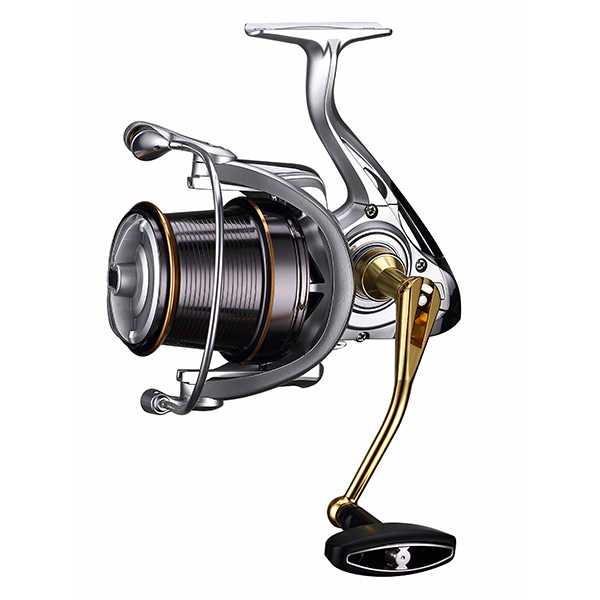

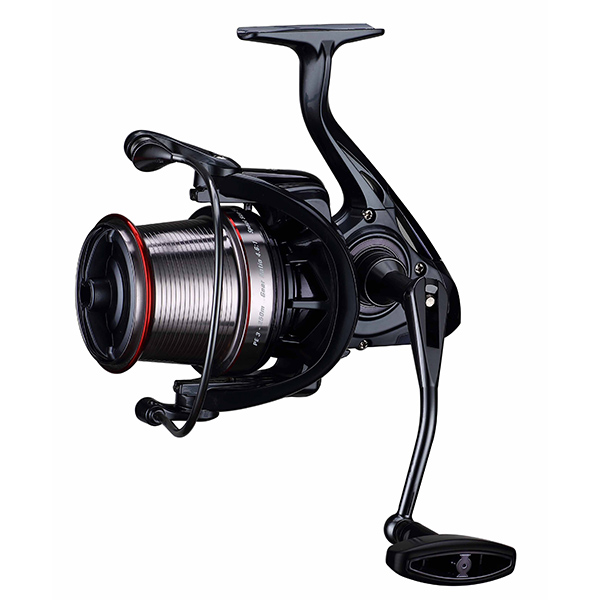

KRL
Long cast spool
More lighter body
Forged aluminum spool with deep or match spool
Worm shaft structure
Instant anti-reverse system
Power drive gear equipped for high strength
Coiled bail spring
Right/left inter-changeable handle
Computer balanced rotor
High tensile strength plastic body
Stainless steel ball bearing,shaft, washers and screws for salt water
Non-asbestos sheet washer
Quick drag system
|
Model
|
Ball Bearings
|
Gear Ratio
|
Line capacity(mm/m)
|
Line capacity(mm/m)
|
|
5000L
|
6+1BB
|
4.6:1
|
10/360;12/295;15/210
|
0.27/330;0.30/270;0.35/195
|
|
6000L
|
6+1BB
|
4.6:1
|
15/410;20/315;25/245
|
0.35/375;0.40/290;0.45/225
|
|
7000L
|
6+1BB
|
4.6:1
|
15/550;20/420;25/325
|
0.35/505;0.40/385;0.45/300
|
|
8000L
|
6+1BB
|
4.6:1
|
8/550;10/400;12/325
|
0.23/505;0.27/370;0.30/300
|
|
9000L
|
6+1BB
|
4.6:1
|
12/750;15/550;20/425
|
0.30/690;0.35/505;0.40/390
|
|
10000L
|
6+1BB
|
4.6:1
|
15/940;20/730;25/565
|
0.35/860;0.40/670;0.45/520
|
|
|
