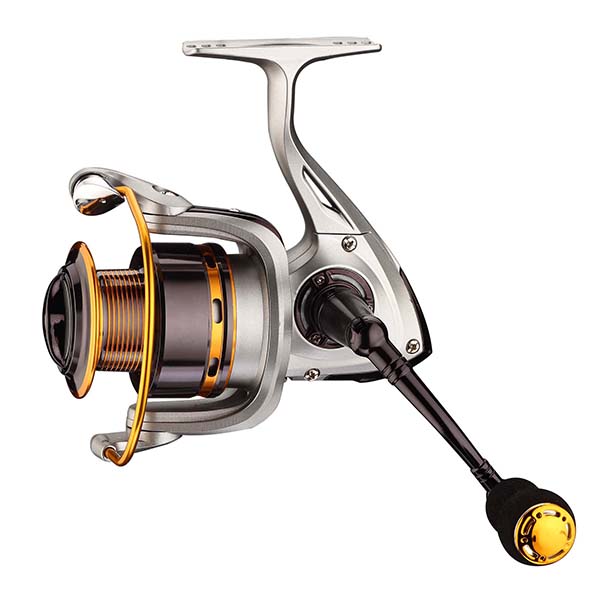

EUD
More short body with large spool and large line capacity
Forged aluminum spool
Instant anti-reverse system
Power drive gear equipped for high strength
Coiled bail spring
Right/left inter-changeable handle
Computer balanced rotor
High tensile strength plastic body
High quality bail bearings with Japanese quality
Worm shaft structure
Wool washer brake group
|
|
Model
|
Ball Bearings
|
Gear Ratio
|
Line capacity(lbs/yds)
|
Line capacity(mm/m)
|
|
1000
|
5+1BB
|
5.5:1
|
3/255;4/210;6/130
|
0.18/235;0.20/195;0.25/120
|
|
2000
|
5+1BB
|
5.5:1
|
3/310;4/250;6/155
|
0.18/285;0.20/230;0.25/150
|
|
3000
|
5+1BB
|
5.2:1
|
6/235;10/165;12/120
|
0.25/215;0.30/150;0.35/110
|
|
4000
|
5+1BB
|
5.2:1
|
10/190;12/140;15/110
|
0.30/175;0.35/130;0.40/100
|
|
5000
|
5+1BB
|
5.2:1
|
12/215;15/165;20/105
|
0.35/195;0.40/150;0.45/120
|
|
6000
|
5+1BB
|
5.2:1
|
18/155;20/125;35/90
|
0.35/230;0.40/180;0.45/145
|
|
